Dimension measurement
Paper and cardboard
Color and coating hardness tester
Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc
Model:

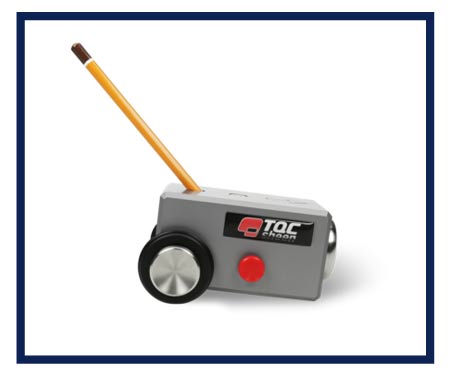

1-Pencil hardness tester
2- Pen hardness tester: This tool is used with three types of springs
3-Pandoli hardness tester:
determination of hardness with KONIG and PERSOZ methods.
In both methods, according to the ISO15220 standard, the number of oscillations of the pendulum on the surface of the sample shows the hardness of the sample
BENDING TEST Application: Determination of coating resistance in terms of flexibility or cracking getting layered Manufacturer: TQC Netherlands and NEURTEK Spain Model: conical and cylindrical
Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Name of the device: Thermograph (temperature data logger)
Application: recording the temperature data of paint baking ovens
Manufacturing company: TQC Netherlands
Model: CURVE-X3
CURVE-X3 is recommended for paint curing ovens due to its easy use and high quality of temperature data recording. TQC IDEAL FINISH software analyzes the recorded data. Three simple steps of operation:
⦁ Connecting the probes to the device and turning on the device key ⦁ placing the device in the box and sending it into the furnace ⦁ Reading the results from the screen or sending them to the printer
Surface roughness meter or roughness test
Application: To determine the texture of the surface roughness, by determining the amount of vertical changes on the surface compared to the real smooth surface
Manufacturing company: Mitutoyo of Japan and NEURTEK of Spain and AMITTARI of Hong Kong
Model :
1-Sandblast roughness meter
2-Surface roughness gauge (Ra, Ry, Rz)
Roughness is a measure to determine the texture of the surface and it is determined by determining the amount of vertical changes on the surface compared to the actual smooth surface. If these changes are large, it has a rough surface, and if it is small, it is soft. Roughness plays an important role in determining the mutual effect of surfaces and by knowing it, many behaviors of mechanical components can be predicted. In the usual equipment for roughness measurement, which is known as roughness tester or roughness tester, contact method is used and a needle-like head moved on the surface according to the number of oscillations and maximum displacement can determine the surface roughness.
Name of the device: Grindometer
Application: To determine the size of particles and fine grains of most materials such as paints, varnishes, colored materials, fillers, etc.
Model: two grooves with graded slopes in 3 scales µm (micron), PCU (North), NS (Hegman)
manufacturing company: TQC Netherlands and NEURTEK Spain
Polymer-based coating ultrasonic thickness gauge POSITECTOR 200 made by DEFELSKO company in America
Using the ultrasonic method, measuring the thickness of single and three layers on non-metallic and polymeric bases (rubber, plastic, concrete, wood, asphalt, composite materials, etc.),…
