Name of the device: Paint and Resin Applicator
Application: applying a coating with a certain thickness on the surface Image Manufacturing company: TQC Netherlands and NEURTEK Spain
1-BAKER FILM APPLICATORS
2–BIRD-TYPE FILM APPLICATORS
3- Sided FILM APPLICATOR
4-TRIPLE RESERVOIR FILM APPLICATOR 90|150 MICRONS
5-MICROMETER FILM APPLICATORS
6-FILMAPPLICATOR FOR SAG AND LEVELLING
7-WIRE BAR COATER
8-SIDED FILM APPLICATOR
9-AUTOMATIC FILM APPLICATORS
BENDING TEST Application: Determination of coating resistance in terms of flexibility or cracking getting layered Manufacturer: TQC Netherlands and NEURTEK Spain Model: conical and cylindrical
Bending Test GT-7071-A
Bending resistance testing machine by flexometric method of leather (shoe upper) model GT-7071-A made by Gotech company (Taiwan
Application of the device: This device is used to determine the resistance of leather against bending.
Device performance: The desired sample is prepared according to the standard dimensions and placed in the built-in places. The placed sample is repeatedly subjected to bending. After performing the number of bending mentioned in the standard, the sample is taken out and it is visually examined in terms of defects and deformation.
Relevant standards:
– ISRI 2123
– ISO 5402
Technical Specifications:
Ability to test six samples at the same time
Sample dimensions: 45 x 70 mm
Counter: 0~999,999
Dimensions (H×D×W): Cm 30 x 58 x 50
Weight: 60 Kg
Power consumption: 1𝝓AC 220V, 3A
Charpy Impact Tester – Gotech
Charpy impact tester measures the energies absorbed by the specimens of various metallic materials after impacting at a specified angle and defined weight so as to determine their toughness.
Model: GT-7052 (Analogue)
Model: GT-7052-D (Digital)
Colorimeter The colorimeter or calorimeter or color analyzer is one of the equipments of paint and resin laboratories and industrial coatings, among the widely used industries, the colorimeter can be used in lacquer, ink, coating, leather, paper, printing, plastic, electronics, furniture, industries. He mentioned wood, decorations, ceramics, tiles, metals, etc.
Colorimeter The colorimeter device is used to check and analyze the color spectrum and color spectrum coordinates in order to match the color of the standard sample with the color of the produced sample. In this device, the parameters L* A* B* for the standard sample and the produced sample are measured and Finally, the difference between these two samples is determined by the EΔ parameter. ΔE=√((L2-L1)^2+(B 2-B1)^2+(A2-A1)^2)) L A B is the most complete color space that can be seen by humans.
Colorimeter calibration In this model, L indicates Lightness, indicating the lightness of the color from 0 black to 100 white A from -120 red to +120 green B is from +120 yellow to -120 blue.
X-RITE RM200QC colorimeter For complete color analysis and color comparison based on SPECTROCOLORIMETER For applying masterbatch and different color coatings
Features and benefits: – Complete color analysis – Increased color quality control – Show L*a*b*c*h – Draw L*a*b diagram – submit information – PC connection cable – Light and portable
1- RM200QC Model of XRITE company, America 2- NR145 model of 3NH company in China
compressive strength of safety claws(GT-7049-E)
The device for testing the compressive strength of safety claws, model GT-7049-E, made by Gotech (Taiwan)
Application: This device is used to determine the amount of resistance against toe pressure in safety shoes.
Device performance: The sample is prepared according to the dimensions and shape required in the relevant standard and is placed in the embedded location and subjected to compressive force. The amount of force required to cause deformation in the sample is evaluated as the amount of resistance against compression.
Relevant standards:
· 7733 ISRI
· ISO 20344, BS EN 344
Technical Specifications:
· Pressure force: 20 KN
· Sensor: load cell
Display: U 25 controller
· Units: kgf, N, Kpa
· Separation of forces: 1/50,000
· Accuracy: half percent
Weight: 150 kg
· Power consumption: 1𝝓AC 220V, 15A
cracking resistance of the leather(GT-7072A)
The test device for determining the cracking resistance of the leather surface made by Gotech (Taiwan, model GT-7072-A)
Application: This device is used to determine the resistance of the surface of leather against the deformation caused by the application of force.
Relevant standards:
ISIRI 6318
DIN 53325, ISO 3379
Technical Specifications:
· Strength: 100 Kg
Niro digital display model U25
· Ability to convert units: kgf, N, g, LB, psi, kpa
Resolution: 1/50,000
Diameter of the sample: 𝝓25 mm
Test speed: 12 mm/min
Steel ball diameter: 6.25 mm
· Protrusion display range: 0~20 mm
Dimensions (H x D x W): 45 x 33 x 44 cm
· Power consumption: 1𝝓, AC 220V
Device Name: Adhesion Test (Cross Cut)
Application: to measure the adhesion of paint and resin coatings
Model: one-sided or 4-sided blade with 1, 2 or 3 mm blade intervals
Made by: TQC Netherlands and NEURTEK Spain
Device Name: Cupping Test
Application: To determine the tensile strength of protective coatings such as paints and resins against volume change, cupping, and sagging
Manufacturer: TQC Netherlands and NEURTEK Spain
Model: manual and automatic
Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Device name: DRYING TIME
Application: To measure the drying time of the coating on the surface
Manufacturer: TQC Netherlands and NEURTEK Spain

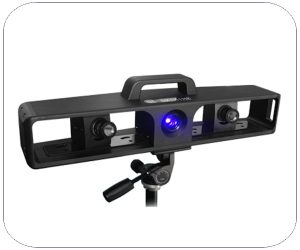

اسکنر سه بعدی Eascan_D , ویژه طراحی برای اندازه گیری های سه بعدی می باشد.
سرعت بالای اسکن :
کمتر از 4 ثانیه برای اسکن های تکی
فقط چند دقیقه برای قطعات کوچک اسکن طول می کشد
حدود 30 دقیقه اسکن قطعات 1 متر به بالا طول می کشد ( که برای اُپراتورهای مختلف متنوع می باشد)
اسکن راحت :
مجهز به سه مجموعه از رنج اسکن می باشد. برای تفتیش و اندازه گیری های سه بعدی مناسب می باشد؛ و همچنین می تواند برای اندازه گیری و تفتیش اشیاء سنگین و بزرگ مناسب می باشد.
تکنولوژی آسان گرفتن عکس :
اسکن سه بعدی Blue light نور پروژه LED امنی را تصویب می کند که برای چشم ها بی ضرر می باشد.
قابل حمل :
کوچک و قابل حمل است و در شرایط مختلف کاربرد دارد .
ابعاد کامل اندازه گیری و تفتیش :

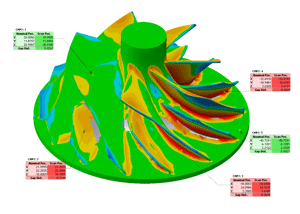

اسکن سه بعدی بدون تماس می تواند کاربرد در اجزاء پیچیده داشته باشد؛ مانند تفتیش و اندازه گیری پره توربین . حدود 10% از زمان کلی را مصرف می کند و به سیستم CMM مرسوم احتیاج دارد. نه فقط سریعتر بلکه همچنین تفتیش و اندازه گیری ابعاد کامل را می تواند انجام دهد. لینک های مرتبط: اسکنر سه بعدی EinScan-S اسکنر سه بعدی EinScan-Pro اسکنر سه بعدی OptimScan-3M اسکنر سه بعدی OptimScan-5M

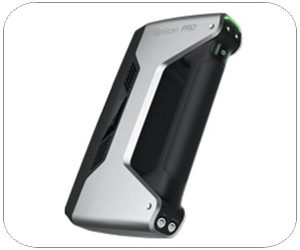

. داده های آبجکت را به سرعت میگیرد و به کامپیوتر انتقال میدهد EinScan_pro
که شامل بدن انسان و سطح هر آبجکت دیگری میباشد؛ در واقع هیچ حدی برای اسکن ندارد. پیشنهاد ما برای اسکن کردن ابعادی حدود 0.03_4m می باشد
روش های اسکن کردن با EinScan_pro :
–handheld 3D Scan :
EinScan_pro اسکنر دستی چند کاره میباشد , که برای اسکن دستی احتیاج به حمل اسکنر دارد که ملزم به دقت بالا میباشد.
–Automatic Scan :
در این روش اسکنر به میز اتوماتیک وصل می شود و 360 درجه اسکن را فقط در 1.5 دقیقه انجام میدهد.
–Free Scan :
اسکنر باید روی سه پایه باشد برای free Scanپس در نتیجه بنا بر احتیاج نوع اسکن را انتخاب میکنیم .
جهت کسب اطلاعات بیشتر اینجا را کلیک نمایید.
