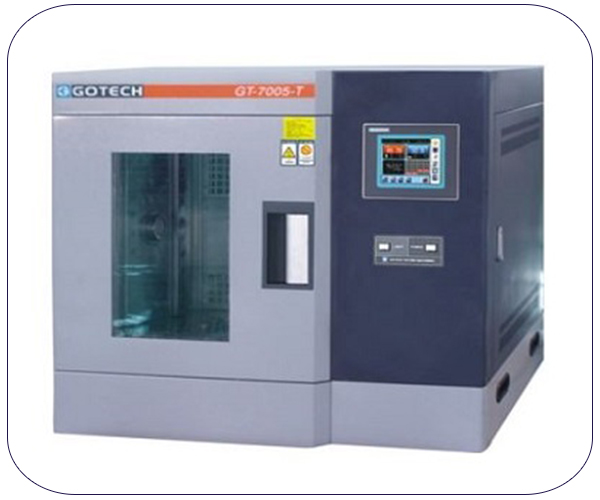

HUMIDITY AND TEMPERATURE CHAMBER

Universal Testing Machine for Metals – Gotech

Specifications of Gotech universal testing machines:

• Equipped with load cell with high resolution (1/200000)
• Equipped with high quality and designing grips and jaws
• Equipped with limit switch
• According to standards such as DIN 51221EN 10002-2, ISO 7500/1, JIS B7723, ASTM E4, BS 1610
• Equipped with powerful software (U-65)
• Be able to show many kinds of curves such as stress – strain, force – elongation, elongation – time etc…

• Universal Testing Machine

Servo control system (servo motor made in Yaskawa – Japan)

           Model: AI-7000-LA

AI-7000-LA50	AI-7000-LA30	AI-7000-LA20	AI-7000-LA10	Model
500kN	300kN	200kN	100kN	Capacity (optional)
kgf, lbf, N, kN, kPa, Mpa				Unit (Switchable)
1/200,000				Load Resolution
1050 mm				Stroke (exclude the grips)
570 mm				Effective width
0.001~250 mm/min Selectable				Test Speed
±0.5%				Speed Accuracy
AC servo motor				Motor
128 × 90 × 275 cm	126 × 85 × 250 cm	120 × 80 × 220 cm	114 × 70 × 210 cm	Main Unit
165 × 65 × 80 cm				Computer / Desk
1750kg (excluding control cabinet and grips)	1230kg (excluding control cabinet and grips)	1050kg (excluding control cabinet and grips)	717kg (excluding control cabinet and grips)	Main Unit
102 kg				Computer / Desk



• Universal Testing Machine

Hydraulic system

Model: UN-7001-LC





UN-7001-LC10	UN-7001-LC20	UN-7001-LC30	UN-7001-LC50	UN-7001-LC100	UN-7001-LC200	Model
100KN	200KN	300KN	500KN	1000KN	2000KN	Capacity
1~90	1~90	1~90	1~70	1~70	1~65	Speed(mm/min)
By Computer
200	200	200	220	220	230	Display Method
6	6	6	6	6	6	Ram Stroke
410	410	410	450	450	630	Number of pillars
Hydraulic based						Effective Space Between two Columns
300+/-10%						Crosshead Speed(Up/Down)
850×660×1950	850×660×1950	850×660×1950	950×750×2150	1060×830×2500	1320×1080×3150	Main Unit(mm)	Dimension(W×D×H)
1270×760×990						Control Uni(mm)t
Plate and rod grips						Standard accessories
