compressive strength of safety claws

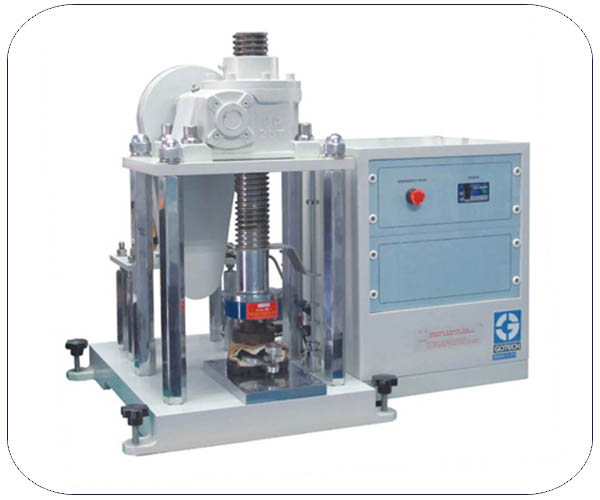

compressive strength of safety claws(GT-7049-E)

The device for testing the compressive strength of safety claws, model GT-7049-E, made by Gotech (Taiwan)

Application: This device is used to determine the amount of resistance against toe pressure in safety shoes.

Device performance: The sample is prepared according to the dimensions and shape required in the relevant standard and is placed in the embedded location and subjected to compressive force. The amount of force required to cause deformation in the sample is evaluated as the amount of resistance against compression.

Relevant standards:

· 7733 ISRI

· ISO 20344, BS EN 344

Technical Specifications:

· Pressure force: 20 KN

· Sensor: load cell

Display: U 25 controller

· Units: kgf, N, Kpa

· Separation of forces: 1/50,000

· Accuracy: half percent

Weight: 150 kg

· Power consumption: 1𝝓AC 220V, 15A
