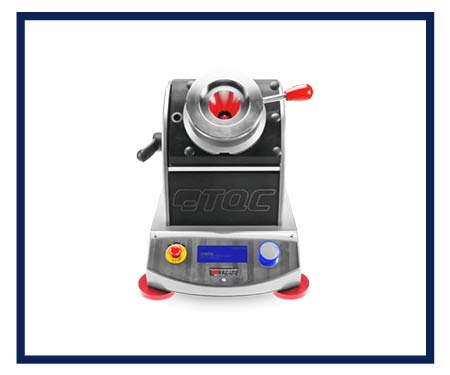

Device Name: Cupping Test
Application: To determine the tensile strength of protective coatings such as paints and resins against volume change, cupping, and sagging
Manufacturer: TQC Netherlands and NEURTEK Spain
Model: manual and automatic
Name of the device: SALT SPRAY
Manufacturer: GOTECH, Taiwan
Application: Creating conditions of salt fog to observe the degree of product degradation
Model: 108 liter, 270 liter and 400 liter

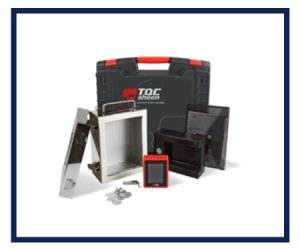

Name of the device: Thermograph (temperature data logger)
Application: recording the temperature data of paint baking ovens
Manufacturing company: TQC Netherlands
Model: CURVE-X3
CURVE-X3 is recommended for paint curing ovens due to its easy use and high quality of temperature data recording. TQC IDEAL FINISH software analyzes the recorded data. Three simple steps of operation:
⦁ Connecting the probes to the device and turning on the device key ⦁ placing the device in the box and sending it into the furnace ⦁ Reading the results from the screen or sending them to the printer
Color and coating hardness tester
Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc
Model:

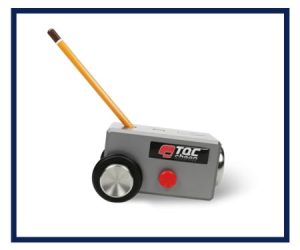

1-Pencil hardness tester
2- Pen hardness tester: This tool is used with three types of springs
3-Pandoli hardness tester:
determination of hardness with KONIG and PERSOZ methods.
In both methods, according to the ISO15220 standard, the number of oscillations of the pendulum on the surface of the sample shows the hardness of the sample
Thickness gauge
The thickness gauge is one of the most essential and basic equipments of paint and resin and industrial coating laboratories. The thickness gauge is used to inspect and measure the thickness of paint and coating, the thickness of plating and the thickness of galvanized, the thickness of anodizing and the thickness of coating on wood, asphalt and concrete. And … is used. Coating thickness measurement is very important in QC discussion in product quality control, process control and cost control of consumables. Among the important industries where the thickness gauge device is used are paint and resin industries, powder paints, traffic paints, construction paints, industry electroplating, aluminum anodizing industry, automobile industry, pipe coating industry, home appliance industry, etc.
This device is available in self-probe and separate probe models.
Ferrous (F) series devices for measuring the thickness of paint, glaze, epoxy, phosphate, hot galvanized, hard, etc. are based on ferrous metals.
Non Ferrous (N) series devices for measuring the thickness of paint, glaze, epoxy, Teflon, anodizing, aluminum, etc. are based on non-ferrous metals.
(FNF) series devices for measuring coating thickness are based on ferrous and non-ferrous metals and have both high capabilities.
The thickness of the non-metal base:
Wood thickness gauge This device is used to measure the thickness of non-metallic and polymer-based coatings such as (rubber, plastic, concrete, wood, asphalt, composite materials, etc.). A thickness gauge is used.
Ultrasonic thickness gauge
The application of this device is to measure the wall thickness of metal, steel, plastic pipes, etc.
After some time, material transfer pipes get corroded and the thickness of the pipe wall decreases. The thickness of ultrasonic gauges by sending ultrasonic waves and its reflection is able to measure the wall thickness of metal and plastic pipes, etc.
Thickness gauges
Paint thickness gauges are used in different fields to measure the thickness of polymer surfaces, concrete, wood, walls, steel and plastic pipes, etc.
Various types of thickness gauges are used to measure paint, glaze, epoxy, and galvanized coatings. Iron base as well as anodizing and Teflon are non-ferrous based. Also, ultrasonic thickness gauges are used to measure the coating on polymer surfaces and to measure the wall thickness of steel and plastic
The types of paint thickness gauges:
1- Thickness gauge of paint and coating and plating

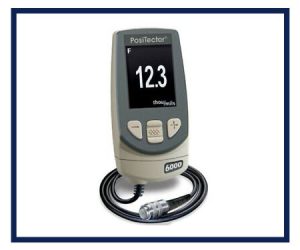

POSITECTOR6000 model (separate and independent probe) made by DEFELSKO company in America
2- Digital thickness gauge of paint, coating and plating
Head probe based on Fe/NFe (ferrous and non-ferrous metals) Made in China, model LD0800
3-Digital thickness gauge of paint, coating and plating
Separate probe based on Fe/NFe made in China
4- Digital coating thickness gauge POSITECTOR 200 model made by DEFELSKO company in America
by ultrasonic method, measuring the thickness of single and three layers on polymer surfaces, concrete, wood, etc.
5- UTG (Ultrasonic Wall Thickness) ultrasonic thickness gauge made by Deflesko company in America
By ultrasonic method, to measure the wall thickness of steel, plastic, etc
Name of the device: Grindometer
Application: To determine the size of particles and fine grains of most materials such as paints, varnishes, colored materials, fillers, etc.
Model: two grooves with graded slopes in 3 scales µm (micron), PCU (North), NS (Hegman)
manufacturing company: TQC Netherlands and NEURTEK Spain
Ultrasonic thickness gauge
1- UTG (ULTRASONIC THICKNESS GAUGE) model made by DEFELSKO company in America
by ultrasonic method, in order to measure the thickness of metal, steel, plastic, etc. wall and pipe.
2- FC-100 ultrasonic thickness gauge made in China
By ultrasonic method, to measure the thickness of metal, steel, plastic wall and pipe
