Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Name of the device: Humidity meter
Application: To measure the humidity and temperature of the environment as well as the temperature of the work surface.
Model: Dewchek4
manufacturing company: TQC Netherlands and NEURTEK Spain
Name of the device: SALT SPRAY
Manufacturer: GOTECH, Taiwan
Application: Creating conditions of salt fog to observe the degree of product degradation
Model: 108 liter, 270 liter and 400 liter
Viscosity cups
Application: The flow process (flow) inside an orifice is used to measure viscosity to determine the uniformity of paints, varnishes and other similar products. Viscosity cups are available in two fixed and variable nozzle models.
1- Fixed nozzle
2- Interchangeble nozzle

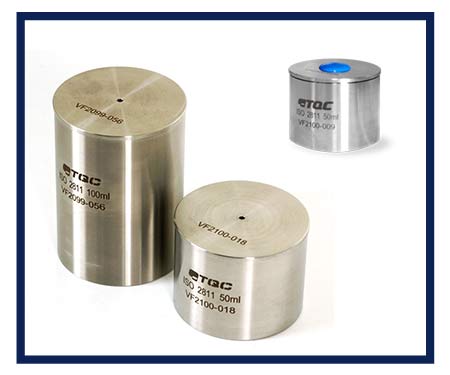

Density cup (pycnometer:
Application: The pycnometer is used to measure the specific gravity of each unit volume of coatings, adhesives or similar liquids at a temperature
Krebs viscometer:
Application: to measure the viscosity of paint and resin
Manufacturer: TQC Netherlands
Device specifications: Measurability: Ku, CP, g
Range: 40.2 – 141 KU (resolution 0.1 KU), 27 – 5274 cP (resolution 5 Cp)
Standard: ASTM D562-01, ASTM D856, ASTM D1131
Name of the device: Thermograph (temperature data logger)
Application: recording the temperature data of paint baking ovens
Manufacturing company: TQC Netherlands
Model: CURVE-X3
CURVE-X3 is recommended for paint curing ovens due to its easy use and high quality of temperature data recording. TQC IDEAL FINISH software analyzes the recorded data. Three simple steps of operation:
⦁ Connecting the probes to the device and turning on the device key ⦁ placing the device in the box and sending it into the furnace ⦁ Reading the results from the screen or sending them to the printer
Device Name: Cupping Test
Application: To determine the tensile strength of protective coatings such as paints and resins against volume change, cupping, and sagging
Manufacturer: TQC Netherlands and NEURTEK Spain
Model: manual and automatic
Thickness gauge of paint and coating, electroplating, galvanization, and electroplating based on metals
1- POSITECTOR 6000 model made by DEFELSKO company in America in head probe and separate probe models
Ferrous (F) series devices for measuring the thickness of paint, glaze, epoxy, phosphate, hot galvanized, hard, etc. are based on iron.
Non Ferrous (N) series devices for measuring the thickness of paint, glaze, epoxy, Teflon, anodizing, aluminum, etc. are non-ferrous based.
(FNF) series devices are thickness gauges for coating on ferrous and non-ferrous metals and have both high capabilities.
2- Thickness gauge of paint and coating and plating
Dual-purpose based on ferrous metals and non-ferrous metals (Fe/NFe)
Self-contained probe and separate probe made in China
