Dimension measurement
Paper and cardboard
Name of the device: types of Krebs and rotary viscometers in different viscosity ranges
Application: To measure the viscosity of paint and resin and industrial adhesives and liquids
Manufacturer: MYR Spain

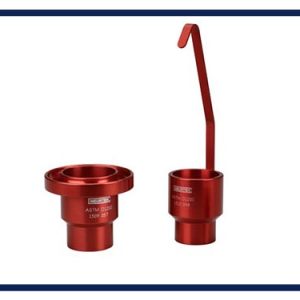

Viscosity cups
Application: The flow process (flow) inside an orifice is used to measure viscosity to determine the uniformity of paints, varnishes and other similar products. Viscosity cups are available in two fixed and variable nozzle models.
1- Fixed nozzle
2- Interchangeble nozzle
Density cup (pycnometer:
Application: The pycnometer is used to measure the specific gravity of each unit volume of coatings, adhesives or similar liquids at a temperature

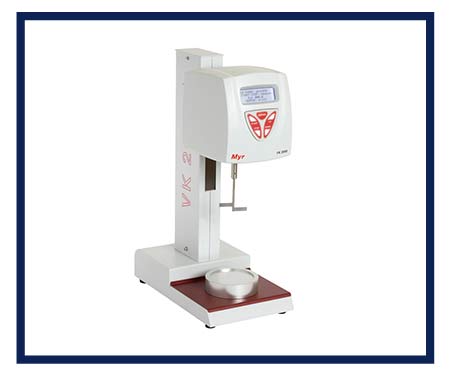

Krebs viscometer:
Application: to measure the viscosity of paint and resin
Manufacturer: TQC Netherlands
Device specifications: Measurability: Ku, CP, g
Range: 40.2 – 141 KU (resolution 0.1 KU), 27 – 5274 cP (resolution 5 Cp)
Standard: ASTM D562-01, ASTM D856, ASTM D1131
Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Name of the device: GLOSSMETER Application: To measure the surface gloss by measuring the amount of light absorption Manufacturing company: TQC Netherlands, NEURTEK Spain and AMITTARI Hong Kong Model: single angle (60°), two angles (20° / 60°) and three angles (20° / 60° / 85°)
Colorimeter The colorimeter or calorimeter or color analyzer is one of the equipments of paint and resin laboratories and industrial coatings, among the widely used industries, the colorimeter can be used in lacquer, ink, coating, leather, paper, printing, plastic, electronics, furniture, industries. He mentioned wood, decorations, ceramics, tiles, metals, etc.
Colorimeter The colorimeter device is used to check and analyze the color spectrum and color spectrum coordinates in order to match the color of the standard sample with the color of the produced sample. In this device, the parameters L* A* B* for the standard sample and the produced sample are measured and Finally, the difference between these two samples is determined by the EΔ parameter. ΔE=√((L2-L1)^2+(B 2-B1)^2+(A2-A1)^2)) L A B is the most complete color space that can be seen by humans.
Colorimeter calibration In this model, L indicates Lightness, indicating the lightness of the color from 0 black to 100 white A from -120 red to +120 green B is from +120 yellow to -120 blue.

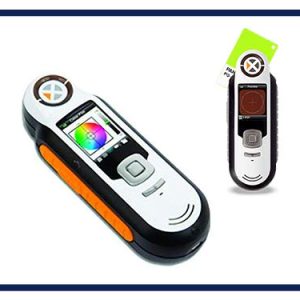

X-RITE RM200QC colorimeter For complete color analysis and color comparison based on SPECTROCOLORIMETER For applying masterbatch and different color coatings
Features and benefits: – Complete color analysis – Increased color quality control – Show L*a*b*c*h – Draw L*a*b diagram – submit information – PC connection cable – Light and portable
1- RM200QC Model of XRITE company, America 2- NR145 model of 3NH company in China
Device Name: Cupping Test
Application: To determine the tensile strength of protective coatings such as paints and resins against volume change, cupping, and sagging
Manufacturer: TQC Netherlands and NEURTEK Spain
Model: manual and automatic
Thickness gauge of paint and coating, electroplating, galvanization, and electroplating based on metals

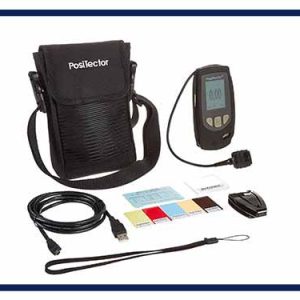

1- POSITECTOR 6000 model made by DEFELSKO company in America in head probe and separate probe models
Ferrous (F) series devices for measuring the thickness of paint, glaze, epoxy, phosphate, hot galvanized, hard, etc. are based on iron.
Non Ferrous (N) series devices for measuring the thickness of paint, glaze, epoxy, Teflon, anodizing, aluminum, etc. are non-ferrous based.
(FNF) series devices are thickness gauges for coating on ferrous and non-ferrous metals and have both high capabilities.
2- Thickness gauge of paint and coating and plating
Dual-purpose based on ferrous metals and non-ferrous metals (Fe/NFe)
Self-contained probe and separate probe made in China
