Profile Projector – Sinpo
Model: JT300
Optical profile projector (JT300) provides 2D measurement for all common geometric features such as circle, line, angle, distance, intersection points etc… All measured results can be printed directly.
| JT300 | Model |
| 200×100×80 (mm) | Measurement scale (x,y,z) |
| 400×225 (mm) | Dimension of table |
| 5 kg | Load capacity |
| 0.001 mm | Resolution |
| (3+L/75)µ | Measurement accuracy |
| 694×380×1065 mm | Dimemsion of machine |

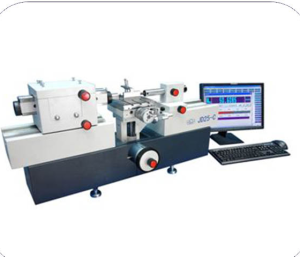

Length Measuring Machine (ULM)
Model: JD25-C
Universal working table:
Area of installation: 160mm×̴160mm
Range of height adjustment: 0-100 mm
Transverse travel: 25 mm
Permissible load: 10 kg
Measuring range:
External size (mm): Absolute measurement: 0-100, Relative measurement: 0-670
Internal size (mm): while using a small measuring hook, 10-400
While using a large measuring hook, 30-370
Using a electric measuring hook (mm): 1-60
Using a universal measuring hook (mm): 14-112

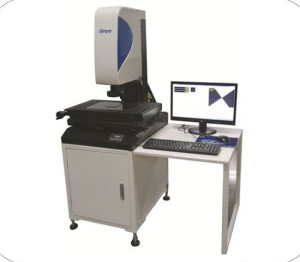

Vision Measuring Machine (VMM) – Sinpo
Model: JVB series
Vision measuring machine (VMM) is used for dimensional measurement in the different medical industries, auto parts, screw & nut and electrical cable industries etc…
Video measuring machine, made of Sinpo company, has a powerful software (2D & 3D).
The results can be output to general software such as PDF, EXEL, WORD, DXF.
This controlling dimension machine can be equipped with touch probe made in Renishaw – England.
| JVB400 | JVB300 | JVB250 | Model |
| 400x300x200 | 300x200x200 | 250x150x22 | Movement x, y, z (mm) |
| 30 | Load capacity | ||
| (3+L/200)µ | Accuracy | ||
| 2 µ | Repeatability | ||
| 0.5 µ | Resolution | ||
| 1/3″ 430,000 pixel color CCD | CCD | ||
| CCD magnification: 0.7x-4.5x, image magnification: 28x-180x | Magnification | ||
