Name of the device: paint and coating hardness tester (paint and surface coating scratch test)
Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc
Manufacturing company: TQC Netherlands and NEURTEK Spain and AMITTARI Hong Kong

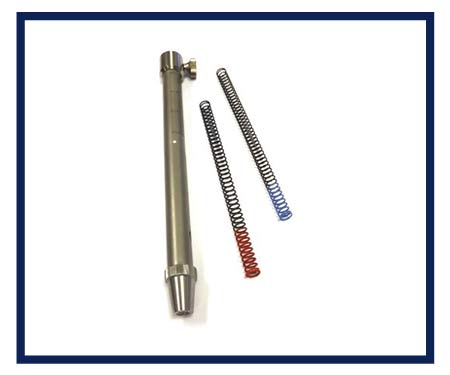

Pen hardness tester: This tool is used with three types of springs
Device name: Viscosity cups
Application: The flow process (flow) inside an orifice to measure viscosity to determine the uniformity of paints, varnishes and other similar products. Model: Viscosity cups with fixed or variable nozzle Made by: TQC Netherlands and NEURTEK Spain 1-Fixed nozzle 2-Variable nozzle: with 1, 2, 3, 4, 5, 6, 7, and 8 mm nozzles
Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Name of the device: paint and coating hardness tester (paint and surface coating scratch test)
Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc
Manufacturer: NEURTEK Spain and TQC Netherlands Pendulum hardness tester: determination of hardness with KONIG and PERSOZ methods. In both methods, the number of oscillations of the pendulum on the surface of the sample shows the hardness of the sample.
Surface roughness meter or roughness test
Application: To determine the texture of the surface roughness, by determining the amount of vertical changes on the surface compared to the real smooth surface
Manufacturing company: Mitutoyo of Japan and NEURTEK of Spain and AMITTARI of Hong Kong
Model :
1-Sandblast roughness meter
2-Surface roughness gauge (Ra, Ry, Rz)
Roughness is a measure to determine the texture of the surface and it is determined by determining the amount of vertical changes on the surface compared to the actual smooth surface. If these changes are large, it has a rough surface, and if it is small, it is soft. Roughness plays an important role in determining the mutual effect of surfaces and by knowing it, many behaviors of mechanical components can be predicted. In the usual equipment for roughness measurement, which is known as roughness tester or roughness tester, contact method is used and a needle-like head moved on the surface according to the number of oscillations and maximum displacement can determine the surface roughness.
Device Name: Pull-off Adhesion Tester Application: to measure the adhesion of paint and coating Manufacturer: Defelsko USA Model: Posi test ATA automatic digital and manual digital models Posi test ATM
Ultrasonic thickness gauge
1- UTG (ULTRASONIC THICKNESS GAUGE) model made by DEFELSKO company in America
by ultrasonic method, in order to measure the thickness of metal, steel, plastic, etc. wall and pipe.
2- FC-100 ultrasonic thickness gauge made in China
By ultrasonic method, to measure the thickness of metal, steel, plastic wall and pipe
