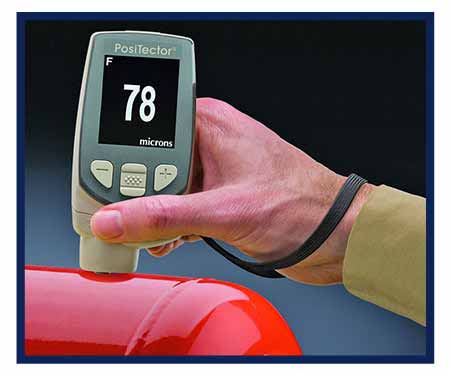

Polymer-based coating ultrasonic thickness gauge POSITECTOR 200 made by DEFELSKO company in America
Using the ultrasonic method, measuring the thickness of single and three layers on non-metallic and polymeric bases (rubber, plastic, concrete, wood, asphalt, composite materials, etc.),…
Paint and coating impact test
Paint and coating impact test – impact test – coating test…
Application: determination of impact resistance and flexibility of coating on the surface
Manufacturing company: TQC Netherlands and NEURTEK Spain
Viscosity cups
Application: The flow process (flow) inside an orifice is used to measure viscosity to determine the uniformity of paints, varnishes and other similar products. Viscosity cups are available in two fixed and variable nozzle models.
1- Fixed nozzle
2- Interchangeble nozzle
Density cup (pycnometer:
Application: The pycnometer is used to measure the specific gravity of each unit volume of coatings, adhesives or similar liquids at a temperature
Krebs viscometer:
Application: to measure the viscosity of paint and resin
Manufacturer: TQC Netherlands
Device specifications: Measurability: Ku, CP, g
Range: 40.2 – 141 KU (resolution 0.1 KU), 27 – 5274 cP (resolution 5 Cp)
Standard: ASTM D562-01, ASTM D856, ASTM D1131
Name of the device: density cups and pycnometers
Application: To measure the specific gravity weight (density) of each unit volume of coatings, adhesives or similar liquids at a temperature.
Model: in volumes of 50 and 100 ml, aluminum and steel
Manufacturer: TQC Netherlands and NEURTEK Spain
Surface roughness meter or roughness test
Application: To determine the texture of the surface roughness, by determining the amount of vertical changes on the surface compared to the real smooth surface
Manufacturing company: Mitutoyo of Japan and NEURTEK of Spain and AMITTARI of Hong Kong
Model :
1-Sandblast roughness meter
2-Surface roughness gauge (Ra, Ry, Rz)
Roughness is a measure to determine the texture of the surface and it is determined by determining the amount of vertical changes on the surface compared to the actual smooth surface. If these changes are large, it has a rough surface, and if it is small, it is soft. Roughness plays an important role in determining the mutual effect of surfaces and by knowing it, many behaviors of mechanical components can be predicted. In the usual equipment for roughness measurement, which is known as roughness tester or roughness tester, contact method is used and a needle-like head moved on the surface according to the number of oscillations and maximum displacement can determine the surface roughness.
Device name: Taber wear device
Application: To determine the wear resistance of all kinds of products, including paint, leather, plastic, etc.
Manufacturing company: Made by Taiwan’s Gotech company with American Tabera brands
Model: GT-7012-T
Standards: ISIRI 11159, ISO 17076 ، ISIRI 7621, ISO 5470 ، ISIRI 8332, ASTM D 3884
Device Name: Adhesion Test (Cross Cut)
Application: to measure the adhesion of paint and resin coatings
Model: one-sided or 4-sided blade with 1, 2 or 3 mm blade intervals
Made by: TQC Netherlands and NEURTEK Spain
