paint and surface coating scratch test

Name of the device: paint and coating hardness tester (paint and surface coating scratch test)

Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc

Manufacturer: NEURTEK Spain and TQC Netherlands

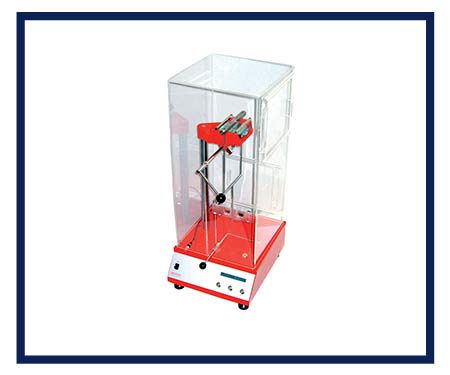

Pendulum hardness tester: determination of hardness with KONIG and PERSOZ methods.
In both methods, the number of oscillations of the pendulum on the surface of the sample shows the hardness of the sample.

viscometers

Name of the device: types of Krebs and rotary viscometers in different viscosity ranges

Application: To measure the viscosity of paint and resin and industrial adhesives and liquids

Manufacturer: MYR Spain

paint and surface coating scratch test

Name of the device: paint and coating hardness tester (paint and surface coating scratch test)

Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc

Manufacturing company: TQC Netherlands and NEURTEK Spain and AMITTARI Hong Kong

Pen hardness tester: This tool is used with three types of springs

Tabar

Device name: Taber wear device

Application: To determine the wear resistance of all kinds of products, including paint, leather, plastic, etc.

Manufacturing company: Made by Taiwan’s Gotech company with American Tabera brands

Model: GT-7012-T

Standards: ISIRI 11159, ISO 17076 ، ISIRI 7621, ISO 5470 ، ISIRI 8332, ASTM D 3884

GLOSSMETER

Name of the device: GLOSSMETER Application: To measure the surface gloss by measuring the amount of light absorption Manufacturing company: TQC Netherlands, NEURTEK Spain and AMITTARI Hong Kong Model: single angle (60°), two angles (20° / 60°) and three angles (20° / 60° / 85°)

Colorimeter

Colorimeter The colorimeter or calorimeter or color analyzer is one of the equipments of paint and resin laboratories and industrial coatings, among the widely used industries, the colorimeter can be used in lacquer, ink, coating, leather, paper, printing, plastic, electronics, furniture, industries. He mentioned wood, decorations, ceramics, tiles, metals, etc.

Colorimeter The colorimeter device is used to check and analyze the color spectrum and color spectrum coordinates in order to match the color of the standard sample with the color of the produced sample. In this device, the parameters L* A* B* for the standard sample and the produced sample are measured and Finally, the difference between these two samples is determined by the EΔ parameter. ΔE=√((L2-L1)^2+(B 2-B1)^2+(A2-A1)^2)) L A B is the most complete color space that can be seen by humans.

Colorimeter calibration In this model, L indicates Lightness, indicating the lightness of the color from 0 black to 100 white A from -120 red to +120 green B is from +120 yellow to -120 blue.

X-RITE RM200QC colorimeter For complete color analysis and color comparison based on SPECTROCOLORIMETER For applying masterbatch and different color coatings

Features and benefits: – Complete color analysis – Increased color quality control – Show L*a*b*c*h – Draw L*a*b diagram – submit information – PC connection cable – Light and portable

1- RM200QC Model of XRITE company, America 2- NR145 model of 3NH company in China
