Colorimeter
The colorimeter or calorimeter or color analyzer is one of the equipments of paint and resin laboratories and industrial coatings, among the widely used industries, the colorimeter can be used in lacquer, ink, coating, leather, paper, printing, plastic, electronics, furniture, industries. He mentioned wood, decorations, ceramics, tiles, metals, etc.
Colorimeter
The colorimeter device is used to check and analyze the color spectrum and color spectrum coordinates in order to match the color of the standard sample with the color of the produced sample. In this device, the parameters L* A* B* for the standard sample and the produced sample are measured and Finally, the difference between these two samples is determined by the EΔ parameter. ΔE=√((L2-L1)^2+(B 2-B1)^2+(A2-A1)^2)) L A B is the most complete color space that can be seen by humans.
Colorimeter calibration
In this model, L indicates Lightness, indicating the lightness of the color from 0 black to 100 white A from -120 red to +120 green B is from +120 yellow to -120 blue.

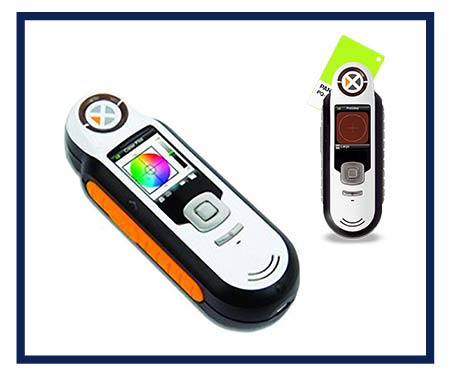

X-RITE RM200QC colorimeter
For complete color analysis and color comparison based on SPECTROCOLORIMETER
For applying masterbatch and different color coatings
Features and benefits:
– Complete color analysis
– Increased color quality control
– Show L*a*b*c*h
– Draw L*a*b diagram
– submit information
– PC connection cable
– Light and portable
1- RM200QC Model of XRITE company, America
2- NR145 model of 3NH company in China
Device name: Viscosity cups
Application: The flow process (flow) inside an orifice to measure viscosity to determine the uniformity of paints, varnishes and other similar products. Model: Viscosity cups with fixed or variable nozzle Made by: TQC Netherlands and NEURTEK Spain 1-Fixed nozzle 2-Variable nozzle: with 1, 2, 3, 4, 5, 6, 7, and 8 mm nozzles
Name of the device: Thermograph (temperature data logger)
Application: recording the temperature data of paint baking ovens
Manufacturing company: TQC Netherlands
Model: CURVE-X3
CURVE-X3 is recommended for paint curing ovens due to its easy use and high quality of temperature data recording. TQC IDEAL FINISH software analyzes the recorded data. Three simple steps of operation:
⦁ Connecting the probes to the device and turning on the device key ⦁ placing the device in the box and sending it into the furnace ⦁ Reading the results from the screen or sending them to the printer
Surface roughness meter or roughness test
Application: To determine the texture of the surface roughness, by determining the amount of vertical changes on the surface compared to the real smooth surface
Manufacturing company: Mitutoyo of Japan and NEURTEK of Spain and AMITTARI of Hong Kong
Model :
1-Sandblast roughness meter
2-Surface roughness gauge (Ra, Ry, Rz)
Roughness is a measure to determine the texture of the surface and it is determined by determining the amount of vertical changes on the surface compared to the actual smooth surface. If these changes are large, it has a rough surface, and if it is small, it is soft. Roughness plays an important role in determining the mutual effect of surfaces and by knowing it, many behaviors of mechanical components can be predicted. In the usual equipment for roughness measurement, which is known as roughness tester or roughness tester, contact method is used and a needle-like head moved on the surface according to the number of oscillations and maximum displacement can determine the surface roughness.
paint and resin Ral
K5 color ral made by Neurtek Spain
K7 color resin made by Neurtek Spain
Device Name: Cupping Test
Application: To determine the tensile strength of protective coatings such as paints and resins against volume change, cupping, and sagging
Manufacturer: TQC Netherlands and NEURTEK Spain
Model: manual and automatic
Thickness gauge of paint and coating, electroplating, galvanization, and electroplating based on metals
1- POSITECTOR 6000 model made by DEFELSKO company in America in head probe and separate probe models
Ferrous (F) series devices for measuring the thickness of paint, glaze, epoxy, phosphate, hot galvanized, hard, etc. are based on iron.
Non Ferrous (N) series devices for measuring the thickness of paint, glaze, epoxy, Teflon, anodizing, aluminum, etc. are non-ferrous based.
(FNF) series devices are thickness gauges for coating on ferrous and non-ferrous metals and have both high capabilities.
2- Thickness gauge of paint and coating and plating
Dual-purpose based on ferrous metals and non-ferrous metals (Fe/NFe)
Self-contained probe and separate probe made in China
