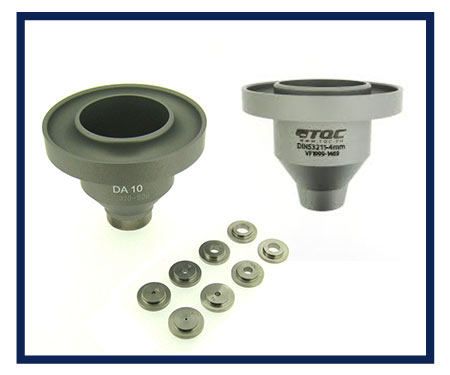

Viscosity cups

Device name: Viscosity cups

Application: The flow process (flow) inside an orifice to measure viscosity to determine the uniformity of paints, varnishes and other similar products.
Model: Viscosity cups with fixed or variable nozzle
Made by: TQC Netherlands and NEURTEK Spain
1-Fixed nozzle
2-Variable nozzle: with 1, 2, 3, 4, 5, 6, 7, and 8 mm nozzles

Humidity meter

Name of the device: Humidity meter

Application: To measure the humidity and temperature of the environment as well as the temperature of the work surface.

Model: Dewchek4

manufacturing company: TQC Netherlands and NEURTEK Spain

THERMOGRAPH

Name of the device: Thermograph (temperature data logger)

Application: recording the temperature data of paint baking ovens

Manufacturing company: TQC Netherlands

Model: CURVE-X3

CURVE-X3 is recommended for paint curing ovens due to its easy use and high quality of temperature data recording. TQC IDEAL FINISH software analyzes the recorded data. Three simple steps of operation:

⦁ Connecting the probes to the device and turning on the device key ⦁ placing the device in the box and sending it into the furnace ⦁ Reading the results from the screen or sending them to the printer

PAINT AND COATING HARDNESS TESTER

Color and coating hardness tester

Application: It is a tool for testing the hardness and scratch resistance of coating materials such as coatings, lacquers, plastics, etc

Model:

1-Pencil hardness tester

2- Pen hardness tester: This tool is used with three types of springs

3-Pandoli hardness tester:

determination of hardness with KONIG and PERSOZ methods.

In both methods, according to the ISO15220 standard, the number of oscillations of the pendulum on the surface of the sample shows the hardness of the sample

Colorimeter

Colorimeter The colorimeter or calorimeter or color analyzer is one of the equipments of paint and resin laboratories and industrial coatings, among the widely used industries, the colorimeter can be used in lacquer, ink, coating, leather, paper, printing, plastic, electronics, furniture, industries. He mentioned wood, decorations, ceramics, tiles, metals, etc.

Colorimeter The colorimeter device is used to check and analyze the color spectrum and color spectrum coordinates in order to match the color of the standard sample with the color of the produced sample. In this device, the parameters L* A* B* for the standard sample and the produced sample are measured and Finally, the difference between these two samples is determined by the EΔ parameter. ΔE=√((L2-L1)^2+(B 2-B1)^2+(A2-A1)^2)) L A B is the most complete color space that can be seen by humans.

Colorimeter calibration In this model, L indicates Lightness, indicating the lightness of the color from 0 black to 100 white A from -120 red to +120 green B is from +120 yellow to -120 blue.

X-RITE RM200QC colorimeter For complete color analysis and color comparison based on SPECTROCOLORIMETER For applying masterbatch and different color coatings

Features and benefits: – Complete color analysis – Increased color quality control – Show L*a*b*c*h – Draw L*a*b diagram – submit information – PC connection cable – Light and portable

1- RM200QC Model of XRITE company, America 2- NR145 model of 3NH company in China
