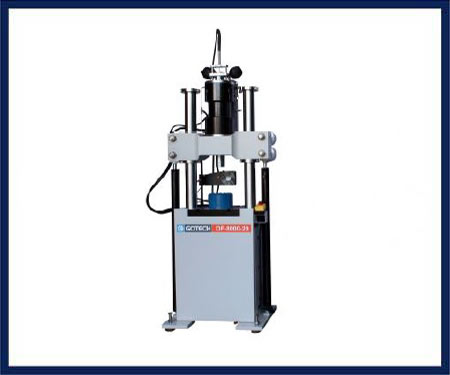

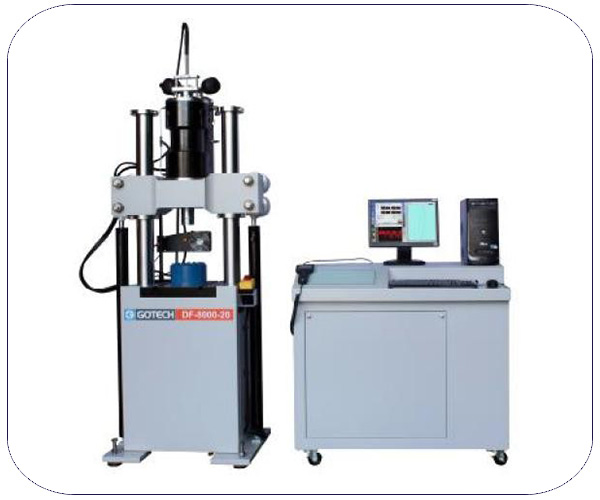

Fatigue Testing Machine – Gotech
Model: DF – 8000
|
DF-8000-500
|
DF-8000-200 |
DF-8000-100 |
DF-8000-50 |
DF-8000-25 |
DF-8000-10 |
DF-8000-5 |
Model |
| 500 |
200 |
100 |
50 |
25 |
10 |
5 |
Capacity (kN) |
| ±50 |
±25(optional: ±50, or specify) |
Stroke (mm) |
| 0.01~50;(0.01~100 optional) |
Frequency (Hz) |
| 120 |
100 |
70 |
50 |
Column dia. (mm) |
| 4 |
2 |
Number of column |
| 1000 |
500 |
Max. vertical daylight(mm) |
| 500 |
400 |
Column clearance (mm) |
| Hydraulic lift and clamp |
Upper crosshead movement |
| 600 |
Crosshead stiffness (kN/mm) |
| 160 |
40 |
20 |
8 |
Flow rate (LPM) |
| 155 |
210 |
185 |
110 |
190 |
105 |
140 |
Pressure (bar) |
| Water(cooling tower prepared by customers) |
Cooling |
|
60KW80HP
|
15KW20HP |
7.5KW10HP |
2.25KW3HP |
3∮AC220/380V |
