HARDNESS TESTER FUTURE

Hardness Testers – Future Tech

Brinell Tester

Model: FB – 3000LC
–    Test load: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 2000, 2500, 3000 kgf
–    Max specimen’s high: 225 mm
–    Max specimen’s depth: 170 mm
–    – Weight of tester: 136 kg
–    Power supply: single phase, AC 100-240V, 50/60 HZ
–    Standard Accessories: ball indenters 5mm & 10mm, flat anvil, V anvil,

Vickers Tester

Model: FV – 810
–    Test load: 0.3 kgf up to 50 kgf
–    Torrent mechanism: Automatic
–    Dimensions of tester (W×D×H): 215×517×690mm
–    Weight of tester: 55 kg
–    Power supply: single phase, AC 100-240V, 50/60 HZ
–    Accessories: test blocks, diamond indenters, measuring microscope, flat anvil, V anvil, ..

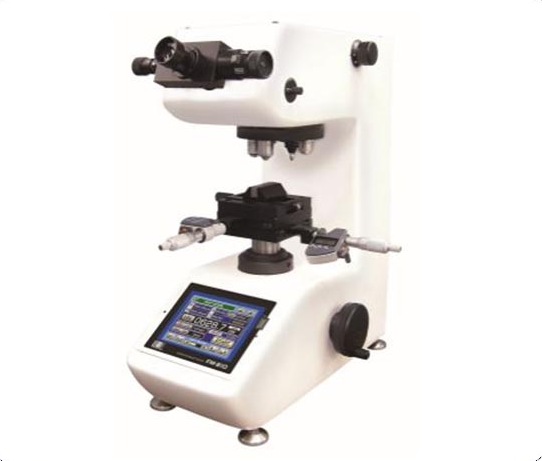

Microhardness tester

Model: FM-810
–    Test load: 1gf up to 2000gf
–    Torrent mechanism: Automatic
–    Dimensions of tester (W×D×H): 186×450×504mm
–    Equipped with RS232C interface
–    Weight of tester: 40 kg
–    Power supply: single phase, AC 100-240V, 50/60 HZ
–    Standard Accessories: test blocks, indenter, objective lens (x10, x 50), …

Analog Rockwell tester

Model: FR-1AN
–    Test load: 60, 100, 150 kgf
–    Max specimen’s high: 170 mm
–    Max specimen’s depth: 150 mm
–    Dimensions of tester (W×D×H): 195×460×677mm
–    Weight of tester: 82 kg
–    Power supply: single phase, AC 100-240V, 50/60 HZ
– Standard Accessories: test blocks (HRB, HRC), steel ball indenters (Ø1/16 Ø 1.588mm), flat anvil, V anvil, …

Digital Rockwell tester

Model: FR-1e
–    Test load: 60, 100, 150 kgf
–    Minor load position setting: Automatic start/Manual start (selectable)
–    Max specimen’s high: 190 mm
–    Max specimen’s depth: 155 mm
–    Dimensions of tester (W×D×H): 190×443×675 mm

–    Weight of tester: 75 kg
–    Equipped with RS232C interface
–    Power supply: single phase, AC 100-240V, 50/60 HZ
–    Standard Accessories: test blocks (HRC, HRB), steel entball inders (Ø1/16 Ø 1.588mm), flat anvil, V anvil, …
