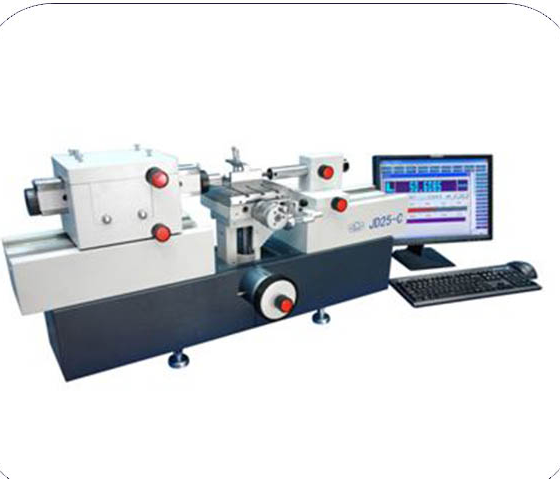

Length Measuring Machine (ULM)

Model: JD25-C

Universal working table:

Area of installation: 160mm×̴160mm

Range of height adjustment: 0-100 mm

Transverse travel: 25 mm

Permissible load: 10 kg

Measuring range:

External size (mm): Absolute measurement: 0-100, Relative measurement: 0-670

Internal size (mm): while using a small measuring hook, 10-400

While using a large measuring hook, 30-370

Using a electric measuring hook (mm): 1-60

Using a universal measuring hook (mm): 14-112
