Universal Testing Machine for Metals – Gotech
Specifications of Gotech universal testing machines:
- Equipped with load cell with high resolution (1/200000)
- Equipped with high quality and designing grips and jaws
- Equipped with limit switch
- According to standards such as DIN 51221EN 10002-2, ISO 7500/1, JIS B7723, ASTM E4, BS 1610
- Equipped with powerful software (U-65)
- Be able to show many kinds of curves such as stress – strain, force – elongation, elongation – time etc…

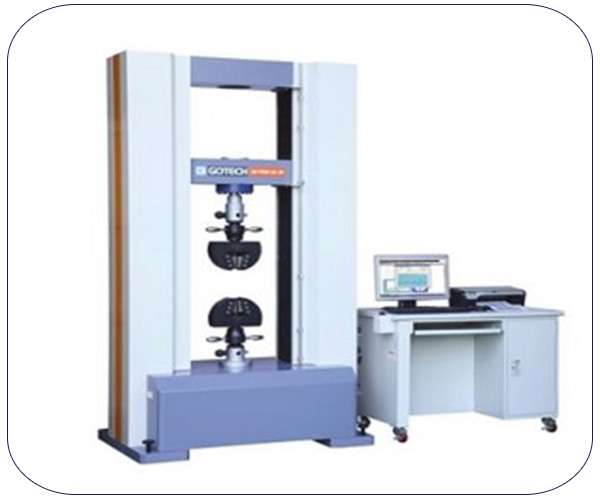

- Universal Testing Machine
Servo control system (servo motor made in Yaskawa - Japan)
Model: AI-7000-LA
| AI-7000-LA50 |
AI-7000-LA30 |
AI-7000-LA20 |
AI-7000-LA10 |
Model |
| 500kN |
300kN |
200kN |
100kN |
Capacity (optional) |
| kgf, lbf, N, kN, kPa, Mpa |
Unit (Switchable) |
| 1/200,000 |
Load Resolution |
| 1050 mm |
Stroke (exclude the grips) |
| 570 mm |
Effective width |
|
0.001~250 mm/min Selectable
|
Test Speed |
| ±0.5% |
Speed Accuracy |
| AC servo motor |
Motor |
| 128 × 90 × 275 cm |
126 × 85 × 250 cm |
120 × 80 × 220 cm |
114 × 70 × 210 cm |
Main Unit |
| 165 × 65 × 80 cm |
Computer / Desk |
| 1750kg (excluding control cabinet and grips) |
1230kg (excluding control cabinet and grips) |
1050kg (excluding control cabinet and grips) |
717kg (excluding control cabinet and grips) |
Main Unit |
| 102 kg |
Computer / Desk |
- Universal Testing Machine
Hydraulic system
Model: UN-7001-LC
| UN-7001-LC10 |
UN-7001-LC20 |
UN-7001-LC30 |
UN-7001-LC50 |
UN-7001-LC100 |
UN-7001-LC200 |
Model |
| 100KN |
200KN |
300KN |
500KN |
1000KN |
2000KN |
Capacity |
| 1~90 |
1~90 |
1~90 |
1~70 |
1~70 |
1~65 |
Speed(mm/min) |
| By Computer |
| 200 |
200 |
200 |
220 |
220 |
230 |
Display Method |
| 6 |
6 |
6 |
6 |
6 |
6 |
Ram Stroke |
| 410 |
410 |
410 |
450 |
450 |
630 |
Number of pillars |
| Hydraulic based |
Effective Space Between two Columns |
|
300+/-10%
|
Crosshead Speed(Up/Down) |
| 850×660×1950 |
850×660×1950 |
850×660×1950 |
950×750×2150 |
1060×830×2500 |
1320×1080×3150 |
Main Unit(mm) |
Dimension(W×D×H) |
| 1270×760×990 |
Control Uni(mm)t |
| Plate and rod grips |
Standard accessories |
