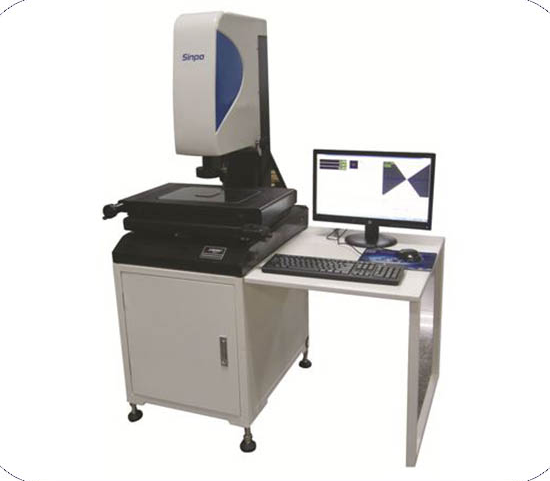

Vision Measuring Machine (VMM) – Sinpo
Model: JVB series
Vision measuring machine (VMM) is used for dimensional measurement in the different medical industries, auto parts, screw & nut and electrical cable industries etc…
Video measuring machine, made of Sinpo company, has a powerful software (2D & 3D).
The results can be output to general software such as PDF, EXEL, WORD, DXF.
This controlling dimension machine can be equipped with touch probe made in Renishaw – England.
|
JVB400
|
JVB300 |
JVB250 |
Model |
| 400x300x200 |
300x200x200 |
250x150x22 |
Movement x, y, z (mm) |
| 30 |
Load capacity |
| (3+L/200)µ |
Accuracy |
| 2 µ |
Repeatability |
| 0.5 µ |
Resolution |
| 1/3" 430,000 pixel color CCD |
CCD |
| CCD magnification: 0.7x-4.5x, image magnification: 28x-180x |
Magnification |
